Single-way
Features:
-Universal AC input/full range
-Mini-sized design, compact size, easy to install
-High reliability: high-quality electrolytic capacitors with high reliability
-Wide working range: -25℃ to 70℃
-Protection function: overload/overvoltage/overtemperature protection
-High efficiency, long life
-100% full load aging test
-Low ripple noise, low standby power consumption, high efficiency
-Satisfies 5000m altitude applications
-Complied with IEC/EN/UL/BSEN62368, EN60335, EN61558, EN62477, GB4943 and other certification standards
| product | Series title | power | Input voltage (VAC) |
Input voltage (VDC) |
Output voltage | size | Certification | Specification book | Sample application |
|---|---|---|---|---|---|---|---|---|---|
 |
BOU-05S▼ ▲ | 5W | 90V~264V | 100V～370V | 3.3V,5V,7V,12V | 75×40×19mm |  |
 |
|
 |
BOU-12S▼ ▲ | 12W | 90V~264V | 100V～370V | 12V | 79.5×50.2×28mm | |
|
|
 |
BOU-15S▼ ▲ | 15W | 90V~264V | 100V～370V | 12V | 100×46.8×24mm | |
|
|
 |
BOU-18S▼ ▲ | 18W | 90V~264V | 100V～370V | 12V | 89×55×28mm | |
|
|
 |
BOU-25S▼ ▲ | 25W | 90V~264V | 100V～370V | 12V | 100×47×21mm | |
|
|
 |
BOU-35S▼ ▲ | 35W | 90V~264V | 100V～370V | 5V,12V,15V,18V,24V,27V,48V | 100×45.6×29mm | |
|
|
 |

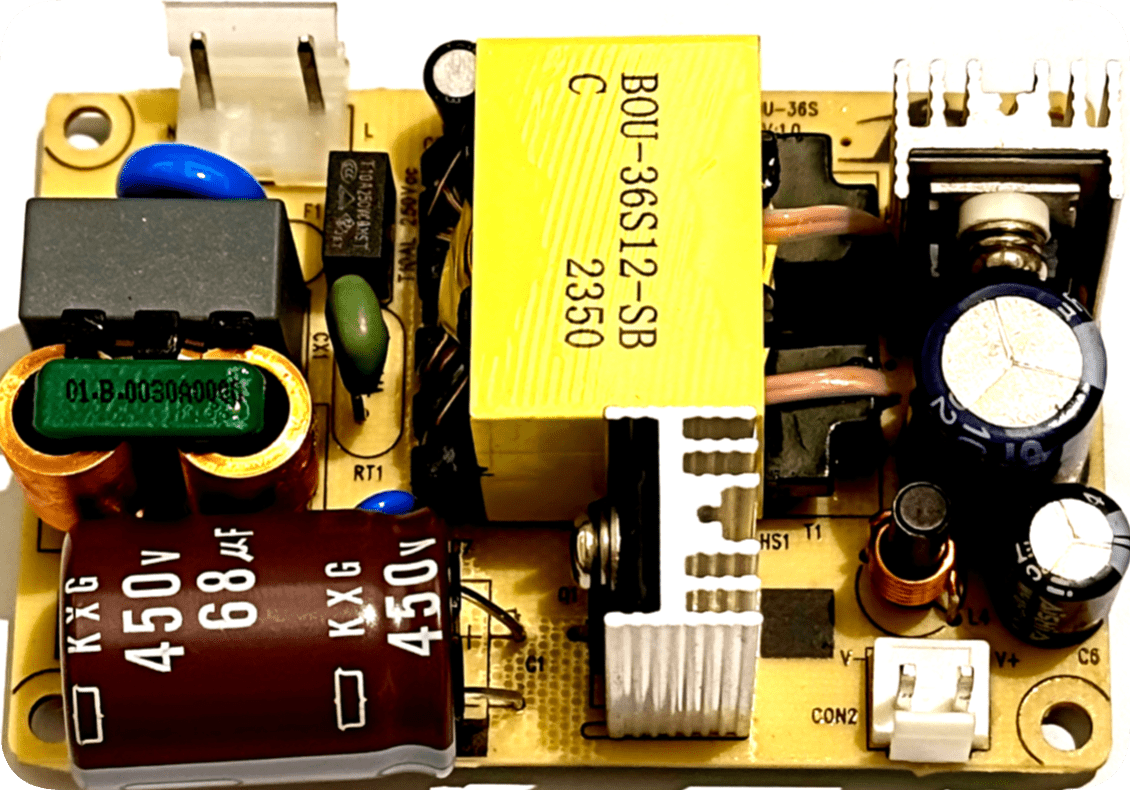

BOU-36S ▼ ▲ | 36W | 90V~264V | 100V～370V | 12V | 76.2×50.8×28mm | |
|
|
 |
BOU-45S▼ ▲ | 45W | 90V~264V | 127V～370V | 5V,12V,15V,18V,24V,27V,48V | 101.6×50.8×29mm | |
|
|
 |
BOU-48S ▼ ▲ | 48W | 90V~264V | 100V～370V | 12V | 76.2×50.8×24mm | |
|
|
 |
BOU-60S▼ ▲ | 60W | 90V~264V | 100V～370V | 5V,12V,15V,18V,24V,27V,48V | 101.6×50.8×29mm | |
|
|
 |
BOU-65S▼ ▲ | 65W | 90V~264V | 100V～370V | 5V,12V,15V,24V,27V,36V,48V | 76.2×50.8×28mm | |
|
|
 |
BOU-75S▼ ▲ | 75W | 90V~264V | 100V～370V | 5V,12V,15V,24V,27V,36V,48V | 127×76.2×29mm | |
|
|
 |
BOU-100S ▼ ▲ | 100W | 90V~264V | 100V～370V | 52V | 127×76.2×29mm | |
|
|
 |
BOU-120S ▼ ▲ | 120W | 90V~264V | 100V～370V | 52V | 127×76.2×29mm | |
|
|
|
BOU-150S ▼ ▲ | 150W | 90V~264V | 100V～370V | 52V | 127×76.2×29mm | |
|
|
 |
BOH-200S▼ ▲ | 200W | 176V~264V | 3.3V,5V,7V,12V,24V,52V | 127×76.2×34mm | |
|
||
|
BOH-240S▼ ▲ | 240W | 176V~264V | 5V,12V,24V,36V,48V,52V | 127×76.2×34mm | |
|
||
 |
BOH-300S▼ ▲ | 300W | 176V~264V | 240V～370V | 52V | 210×110×33mm | |
|
|
 |
BOH-450S▼ ▲ | 450W | 176V~264V | 52V | 220×100×38mm | |
|
||
 |
BOH-600S▼ ▲ | 600W | 176V~264V | 52V | 220×100×34mm | |
|
