单路PFC
特点:
-通用交流输入/全范围
-小型化设计，体积紧凑，安装方便
-高可靠性：采用高可靠性的优质电解电容
-宽工作范围：-25℃至70℃
-保护功能：过载/过压/过温保护
-高效率，长寿命
-100%满负载老化测试
-低纹波噪声、低待机功耗、高效率
-满足5000m海拔应用
-符合IEC/EN/UL/BSEN62368、EN60335、EN61558、EN62477、GB4943等认证标准
| 产品 | 系列标题 | 功率 | 输入电压 (VAC) |
输入电压 (VDC) |
输出电压 | 尺寸 | 安规认证 | 规格书 | 样品申请 |
|---|---|---|---|---|---|---|---|---|---|
 |
BOF-60S▼ ▲ | 60W | 90V~264V | 100V～370V | 12V | 76.2×50.8×24MM |  |
 |
 |
|
BOF-75S▼ ▲ | 75W | 90V~264V | 100V～370V | 12V | 76.2×50.8×24MM | |
|
|
 |
BOF-100S▼ ▲ | 100W | 90~264 | 100~370 | 12V | 127×76.2×33mm | |
|
|
 |
BOF-120S▼ ▲ | 120W | 90~264 | 100~370 | 12V | 127×76.2×33mm |  |
|
|
 |
BOF-125S▼ ▲ | 125W | 90V~264V | 3.3V,5V,12V,13.5V,15V,24V,27V,48V | 127×76.2×30.5mm | |
|
|
|
 |

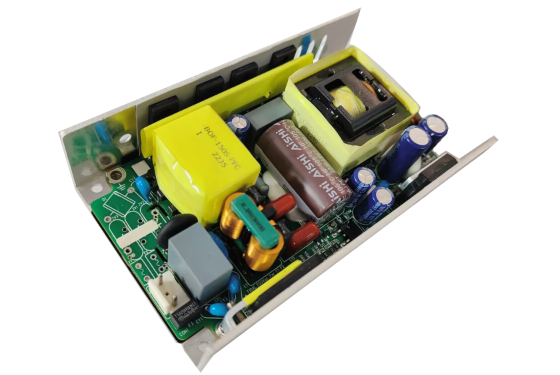

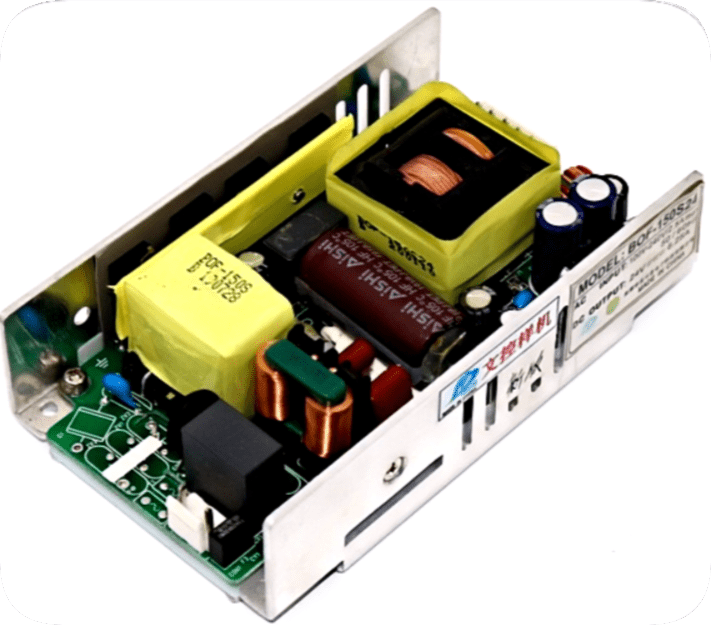

BOF-150S▼ ▲ | 150W | 90V-264V | 100V～370V | 12V,18V,24V,36V,52V,54V | 127×76.2×33mm | |
|
|
|
BOF-180S ▼ ▲ | 180W | 90V-264V | 100V～370V | 18V | 127×76.2×35mm | |
|
|
 |
BOF-200S▼ ▲ | 200W | 90V-264V | 52V | 127×76×35mm | |
|
|
|
 |
BOF-200SN▼ ▲ | 200W | 90V-264V | 3.3V,5V,7.5V,12V,15V,24V,36V,48V | 140×35×25mm | |
|
|
|
 |

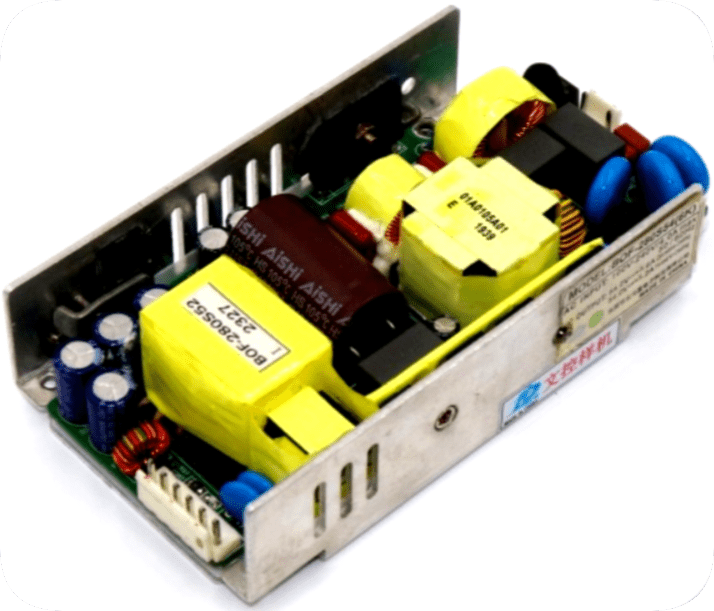

BOF-280S ▼ ▲ | 280W | 90V-264V | 12V | 127×76.2×35mm | |
|
|
|
 |
BOF-290S ▼ ▲ | 290W | 90V~264V | 54V | 188×83×33mm | |
|
|
|
 |
BOF-300S ▼ ▲ | 300W | 90V-264V | 240V～370V | 50V | 210×110×33mm | |
|
|
 |
BOF-400S ▼ ▲ | 400W | 90V-264V | 100V～370V | 52V | 220×100×38mm | |
|
|
 |
BOF-409S ▼ ▲ | 409W | 90V-264V | 54V | 170×100×33mm | |
|
|
|
|
BOF-450S ▼ ▲ | 450W | 90V-264V | 54.5V | 170×100×33mm | |
|
|
|
 |
BOF-460S ▼ ▲ | 460W | 90V-290V | 190V～290V | 56V | 190×85×38mm | |
|
|
 |
BOF-550S▼ ▲ | 550W | 90V-264V | 52V | 127×76.2×35mm | |
|
|
|
|
BOF-750S▼ ▲ | 750W | 90V-264V | 52V | 127×76.2×35mm | |
|
|
|
 |
BOF-600S▼ ▲ | 600W | 90V-264V | 12V,24V,36V,48V,52V,54V | 227×86×36mm | |
|
|
|
 |
BOF-800S▼ ▲ | 800W | 90V-264V | 52V | 227×86.2×34mm | |
|
|
|
 |
BOF-1000S▼ ▲ | 1000W | 90V-264V | 52V | 227×86.2×34mm | |
|
|
