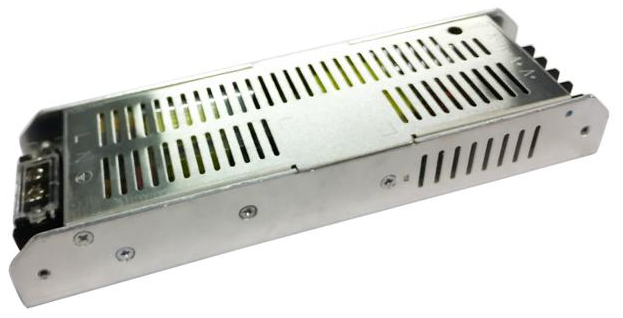

单路PFC
特点:
-通用交流输入/全范围
-小型化设计，体积紧凑，安装方便
-高可靠性：采用高可靠性的优质电解电容
-宽工作范围：-25℃至70℃
-保护功能：过载/过压/过温保护
-高效率，长寿命
-100%满负载老化测试
-低纹波噪声、低待机功耗、高效率
-满足5000m海拔应用
-符合IEC/EN/UL/BSEN62368、EN60335、EN61558、EN62477、GB4943等认证标准
| 产品 | 系列标题 | 功率 | 输入电压 (VAC) |
输入电压 (VDC) |
输出电压 | 尺寸 | 安规认证 | 规格书 | 样品申请 |
|---|---|---|---|---|---|---|---|---|---|
 |
BEF-100SX-50F▼ ▲ | 100W | 90V~264V | 2.8V-5V | 120×50×19mm |  |
 |
 |
|
 |
BEP-100SX-50F▼ ▲ | 100W | 176V~264V | 2.8V~5V | 120×50×19mm | |
|
|
|
|
BEF-200SX-50SF▼ ▲ | 200W | 90V~264V | 2.8V~5V | 137×50×19mm | |
|
|
|
|
BEP-200SX-50SF▼ ▲ | 200W | 176V~264V | 2.8V~5V | 137×50×19mm | |
|
|
|
|
BEF-200SX -50F▼ ▲ | 200W | 90V~264V | 2.8V~5V | 150×50×19mm |  |
|
|
|
|
BEP-200SX-50F▼ ▲ | 200W | 176V~264V | 2.8V~5V | 150×50×19mm | |
|
|
|
|
BEF-200SX-60F▼ ▲ | 200W | 90V~264V | 2.8V~5V | |
|
|
||
|
BEF-200SX-50LF▼ ▲ | 200W | 90V~264V | 2.8V~5V | 160×50×19mm | |
|
|
|
|
BEP-200SX-50LF▼ ▲ | 200W | 176V~264V | 2.8V~5V | 160x50x19mm | |
|
|
|
|
BEF-200SX-55M▼ ▲ | 200W | 90V~264V | 2.8V~5V | 165×55×23mm | |
|
|
|
|
BEP-200SX-55M▼ ▲ | 200W | 176V~264V | 2.8V~5V | 165×55×23mm | |
|
|
|
|
BEF-200SX-60M▼ ▲ | 200W | 90V~264V | 2.8V~5V | 208×60×26mm | |
|
|
|
|
BEP-200SX-60M▼ ▲ | 200W | 176V~264V | 2.8V~5V | 208×60×26mm | |
|
|
|
|
BEF-200SX-60M▼ ▲ | 200W | 90V~264V | 2.8V~5V | 208×60×30mm | |
|
|
|
|
BEP-200SX-60M▼ ▲ | 200W | 176V~264V | 2.8V~5V | 208×60×30mm | |
|
|
|
|
BEF-250SX-55M▼ ▲ | 250W | 90V~264V | 2.8V~5V | 165×55×23mm | |
|
|
|
|
BEP-250SX-55M▼ ▲ | 250W | 176V~264V | 2.8V~5V | 165×55×23mm | |
|
|
|
 |
BEF-300SX-55SM▼ ▲ | 300W | 90V~264V | 2.8V~5V | 165×55×23mm | |
|
|
|
|
BEP-300SX-55SM▼ ▲ | 300W | 176V~264V | 2.8V~5V | 165×55×23mm | |
|
|
|
|
BEF-300SX-55M▼ ▲ | 300W | 90V~264V | 2.8V~5V | 180×55×26mm | |
|
|
|
|
BEF-300SX-60M▼ ▲ | 300W | 90V~264V | 2.8V~5V | 208×60×26mm | |
|
|
|
|
BEP-300SX-60M▼ ▲ | 300W | 176V~264V | 2.8V~5V | 208×60×26mm | |
|
|
|
 |
BEF-400SX-68M▼ ▲ | 400W | 90V~264V | 2.8V~5V | 180×68×26mm | |
|
|
|
|
BEP-400SX-68M▼ ▲ | 400W | 176V~264V | 2.8V~5V | 180×68×26mm | |
|
|
|
|
BEF-400SX-60M▼ ▲ | 400W | 90V~264V | 2.8V~5V | 208×60×26mm | |
|
|
|
|
BEP-400SX-60M▼ ▲ | 400W | 176V~264V | 2.8V~5V | 208×60×26mm | |
|
|
|
|
BEF-400SX-32M▼ ▲ | 400W | 90V~264V | 2.8V~5V | 220×32×28mm | |
|
|
|
|
BEP-400SX-32M▼ ▲ | 400W | 176V~264V | 2.8V~5V | 220×32×28mm | |
|
|
|
|
BEF-400SX-38M▼ ▲ | 400W | 90V~264V | 2.8V~5V | 227×38×26mm | |
|
|
|
|
BEP-400SX-38M▼ ▲ | 400W | 176V~264V | 2.8V~5V | 220×38×26mm | |
|
|
|
|
BEF-400SX-46M▼ ▲ | 400W | 90V~264V | 2.8V~5V | 220×46×26mm | |
|
|
|
|
BEP-400SX-46M▼ ▲ | 400W | 176V~264V | 2.8V~5V | 220×46×26mm | |
|
|
|
|
BEF-400SX-60SM▼ ▲ | 400W | 90V~264V | 2.8V~5V | 235×60×30mm | |
|
|
|
|
BEP-400SX-60SM▼ ▲ | 400W | 176V~264V | 2.8V~5V | 235×60×30mm | |
|
|
|
|
BEF-500SX-60M▼ ▲ | 500W | 90V~264V | 2.8V~5V | 208×60×26mm | |
|
|
|
|
BEP-500SX-60M▼ ▲ | 500W | 176V~264V | 2.8V~5V | 208×60×26mm | |
|
|
