单路
特点:
-通用交流输入/全范围
-小型化设计，体积紧凑，安装方便
-高可靠性：采用高可靠性的优质电解电容
-宽工作范围：-25℃至70℃
-保护功能：过载/过压/过温保护
-高效率，长寿命
-100%满负载老化测试
-低纹波噪声、低待机功耗、高效率
-满足5000m海拔应用
-符合IEC/EN/UL/BSEN62368、EN60335、EN61558、EN62477、GB4943等认证标准
| 产品 | 系列标题 | 功率 | 输入电压 (VAC) |
输入电压 (VDC) |
输出电压 | 尺寸 | 安规认证 | 规格书 | 样品申请 |
|---|---|---|---|---|---|---|---|---|---|
 |

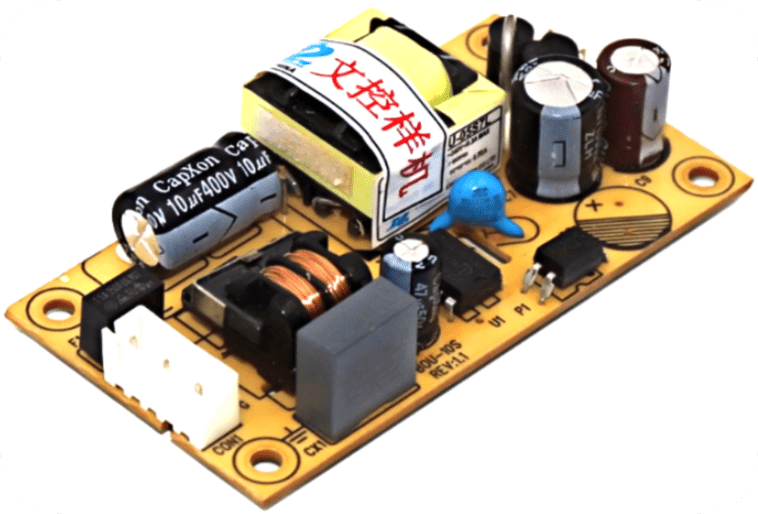

BOU-05S▼ ▲ | 5W | 90V~264V | 100V～370V | 3.3V,5V,7V,12V | 75×40×19mm |  |
 |
 |
 |
BOU-12S▼ ▲ | 12W | 90V~264V | 100V～370V | 12V | 79.5×50.2×28mm | |
|
|
 |
BOU-15S▼ ▲ | 15W | 90V~264V | 100V～370V | 12V | 100×46.8×24mm | |
|
|
 |
BOU-18S▼ ▲ | 18W | 90V~264V | 100V～370V | 12V | 89×55×28mm | |
|
|
 |
BOU-25S▼ ▲ | 25W | 90V~264V | 100V～370V | 12V | 100×47×21mm | |
|
|
 |
BOU-35S▼ ▲ | 35W | 90V~264V | 100V～370V | 5V,12V,15V,18V,24V,27V,48V | 100×45.6×29mm |  |
|
|
 |
BOU-36S ▼ ▲ | 36W | 90V~264V | 100V～370V | 12V | 76.2×50.8×28mm | |
|
|
 |

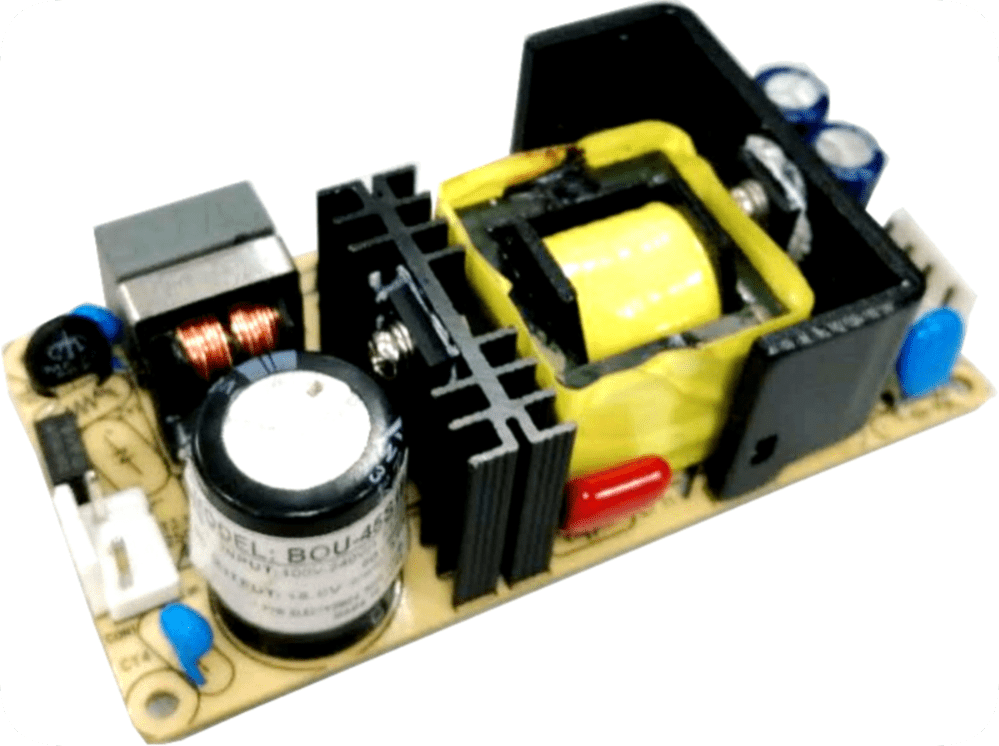

BOU-45S▼ ▲ | 45W | 90V~264V | 127V～370V | 5V,12V,15V,18V,24V,27V,48V | 101.6×50.8×29mm | |
|
|
 |
BOU-48S ▼ ▲ | 48W | 90V~264V | 100V～370V | 12V | 76.2×50.8×24mm | |
|
|
 |

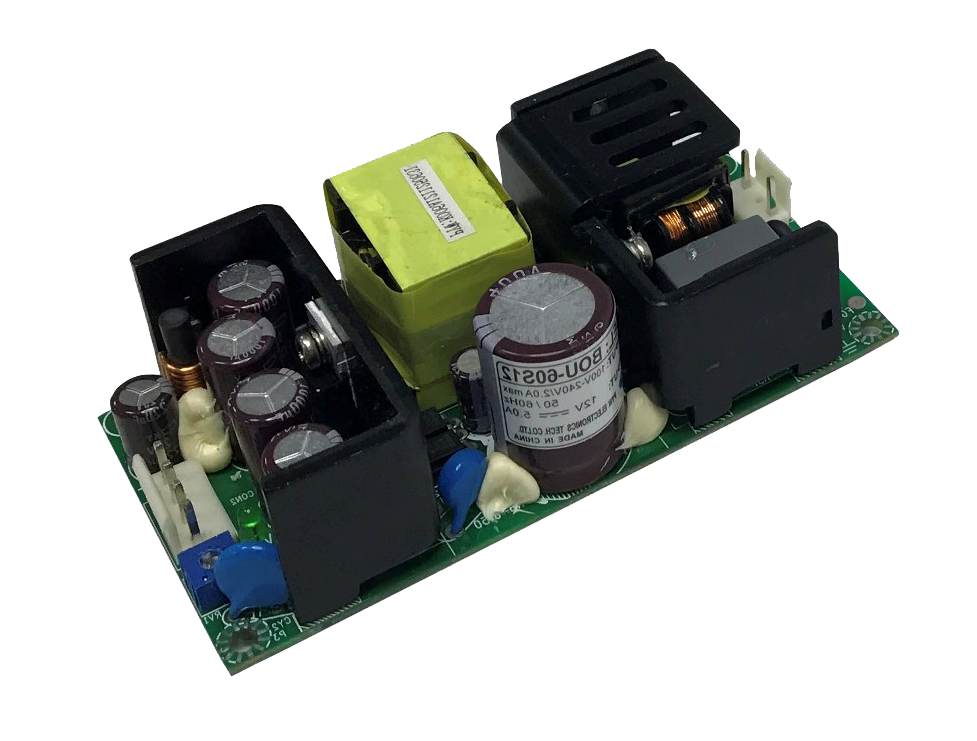

BOU-60S▼ ▲ | 60W | 90V~264V | 100V～370V | 5V,12V,15V,18V,24V,27V,48V | 101.6×50.8×29mm | |
|
|
 |
BOU-65S▼ ▲ | 65W | 90V~264V | 100V～370V | 5V,12V,15V,24V,27V,36V,48V,52V | 76.2×50.8×28mm | |
|
|
 |
BOU-75S▼ ▲ | 75W | 90V-264V | 100V～370V | 5V,12V,15V,24V,27V,36V,48V | 127×76.2×29mm | |
|
|
 |
BOU-100S ▼ ▲ | 100W | 90V-264V | 100V～370V | 52V | 127×76.2×29mm | |
|
|
 |
BOU-120S ▼ ▲ | 120W | 90V-264V | 100V～370V | 52V | 127×76.2×29mm | |
|
|
|
BOU-150S ▼ ▲ | 150W | 90V-264V | 100V～370V | 52V | 127×76.2×29mm | |
|
|
 |
BOH-250S▼ ▲ | 250W | 176V~264V | 5V,12V,24V,36V,48V,52V | 127×76.2×34mm | |
|
|
|
 |
BOH-300S▼ ▲ | 300W | 176V~264V | 240V～370V | 52V | 210×110×33mm | |
|
|
 |
BOH-450S▼ ▲ | 450W | 176V~264V | 52V | 220×100×38mm | |
|
|
|
 |
BOH-600S▼ ▲ | 600W | 176V~264V | 52V | 220×100×34mm | |
|
|
